AX Series Smart Robotic Arms

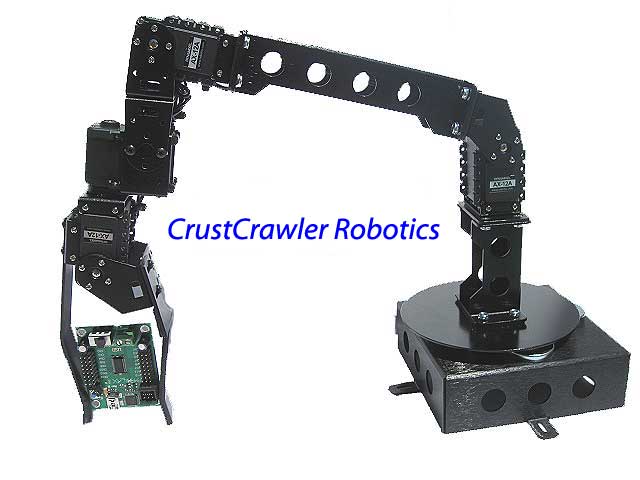

AX Smart Robotic Arm

Now Shipping!

Order Yours Below!

Technical Specifications

AX Smart Robotic Arm Technical Specifications CrustCrawler Robotic Arm Comparison Guide AX-12A Actuator Technical Reference Guide AX-18A Actuator Technical Reference Guide

Key Features

  • 1mbs serial communication protocol
  • Single actuator design per axis
  • Fully ROS,MATLAB,LABVIEW Compatible!
  • Rugged, all aluminum construction for maximum kinematic accuracy (1mm - 3mm)
  • Hard Anodized finish for maximum scratch and corrosion resistance
  • Large gripper with a 4.25 in(10.79cm) clearance
  • Compatible with ANY micro-controller/computer control system / programming Language (Open Source!)
  • The only robotic arms that feature feedback for position, voltage, current and tempertature
  • Smooth, sealed, self lubricating ball bearing turntable
  • (3) integrated mounting tabs for easy mounting to a fixed or mobile base
  • Fast 1M bps communication speed.
  • Full control over position (300 degrees), speed, and torque in 1024 increments
  • Automatic shutdown based on voltage or temperature with status indicator LED
  • AX Robotic Arm IGS Model
Banner 2 Banner 1
Are you a School, University or Business? Click here to go to our purchase order page with information on how to place your purchase order with Crustcrawler

Pictures

axis axis axis axis
AX Smart Robotic Arm Configurations
  • AX Robotic Kit

    AX Hardware Kit

    • (1) Rugged, all aluminum AX Series Robotic Arm Hardware kit
    • (1) Fully Illustrated Construction Guide
    • Note: This kit requires any combination of (4) AX-18A or AX-12A servos
    Hardware Kit - no Wrist Rotate
    $299.00
    Purchase
    Hardware Kit - with Wrist Rotate
    $319.00
    Purchase
  • AX Robotic Kit

    AX-12A Full Kit

    • (1) Rugged, all aluminum AX Series Robotic Arm Hardware kit
    • (1) Fully Illustrated Construction Guide
    • (4) AX-12A Servos without wrist rotate / (5) AX-12A Servos with wrist rotate
    With (4) AX-12A Servos - no Wrist Rotate
    $479.00
    Purchase
    With (5) AX-12A Servos - with Wrist Rotate
    $554.00
    Purchase
  • AX Robotic Kit

    AX-18A Full Kit

    • (1) Rugged, all aluminum AX Series Robotic Arm Hardware kit
    • (1) Fully Illustrated Construction Guide
    • (4) AX-18A Servos without wrist rotate / (5) AX-18A servos with Wrist Rotate
    With (4) AX-18A Servos - no Wrist Rotate
    $679.00
    Purchase
    With (5) AX-18A Servos - with Wrist Rotate
    $799.00
    Purchase
Controllers
  • CM-700

    CM-700 Controller

    • (1) CM-700 Control Module
    • (1) CD-ROM with CM-700 Control Software including RoboPlus Task, Motion and Manager Control
    • (1) Mounting Screw / nut kit
    • (1) Interface cable
    CM-700 Users Guide and Technical Specifications
    $119.90
    Purchase
  • LN-101

    LN-101 USB Downloader

    • This special USB connector is required to connect the CM-700 to a computer USB port.
    • (1) LN-101 USB Downloader
    • (1) 100cm USB cable
    LM-101 Users Guide
    $14.90
    Purchase
  • OpenCM9.04-B

    OpenCM9.04-B

    • Controller: OpenCM9.04-C x 1
    • Socket - 1x20 PIN Header Socket x 2
    • Socket - 1x20 BOX Header Socket x 2
    • Cable - USB Downloader Cable x 1
    • Manual - Instruction Manual x 1

    See the OpenCM9 product page for more information.

    OpenCM9.04-B
    $19.90
    Purchase
  • usb2dynamixel

    USB2Dynamixel

    • USB2Dyanmixel provides USB to RS-232, RS-485, and AX-12 (TTL) interfaces in one unit.
    • (1) USB2dynamixel Controller
    • (1) USB cable

    See the USB2Dynamixel Product Page for more information.

    $49.90
    Purchase
Accessories
  • AX-12A / AX-18A Power supply Kit

    AX-12A/AX-18A Power Supply

    12 Volt/5amp power supply provides plenty of power for the AX-18A Smart Robotic Arm

    • (1) 12Volt/5Amp Power Supply (requires AX12A/AX18A Power Harness)
    $89.00
    Purchase
  • AX-12A / AX-18A Power Harness

    AX-12A/AX-18A Power Harness

    The AX-12 power harness makes powering the AX-12A / AX-18A Smart Robotic Arm or any AX-12A/ AX-18A network quick and easy! Combine this connector with CrustCrawler's AX-12A/AX-18A power supply for a complete AX power system.

    • (1) Power Harness
    • (1) 2.1mm male P5 barrel plug
    • (2) 3 pin molex connectors for easy AX-12A / AX-18A and USB2Dynamixel connections
    $25.00
    Purchase
  • Flexiforce Pressure Sensor

    Flexiforce Pressure Sensor

    The active sensing area is a .375" diameter circle at the end of the sensor. The conductive leads are easy to connect to a breadboard or through-hole area. The Flexiforce has an ideal output for A/D conversion - 0V is no force and 4.2V is 100 lbs. The RCTIME command may be used with a LOOKUP table or calibration formula to execute some math to make the output useful.

    • (1) Flexiforce Pressure Sensor
    $34.95
    Purchase
  • Ping Ultr Sonic Sensor

    Ping Ultra Sonic Sensor

    $29.99
    Purchase
